Play a Square Wave

This covers day007 and day008, it uses DirectSound API to add a square wave sound to our game.

Introduction to DirectSound

Note: DirectSound is deprecated now. You may use the XAudio2 instead. But due to the fact that we want to keep pace with the course, we still use the DirectSound. AND may switch to XAudio2 somedays after finishing the audio part.

How Direct Sound Works

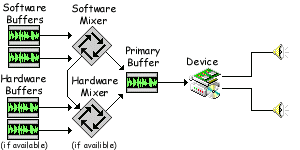

DirectSound works off sound buffers. Microsoft DirectSound buffer objects control the delivery of waveform data from source to a destination.For most buffers, the destination is a mixing engine called the primary buffer. From the primary buffer, the data goes to the hardware that converts digital samples to sound waves. And the source might be a synthesizer, another buffer, a WAV file, or a resource.
We use the secondary buffer to hold our audio data.You can have as many secondary sound buffer as you like.

DirectSoundFig

DirectSound Playback Objects

|Object|Number|Purpose|Main interfaces| |—|—|—|—| |Device|One in each application|Manages the device and creates sound buffers.|IDirectSound8| |Secondary Buffer|One for each sound|Manages a static or streaming sound and plays it into the primary buffer.|IDirectSoundBuffer8,
IDirectSound3DBuffer8,
IDirectSoundNotify8| |Primary buffer|One in each application|Mixes and plays sounds from secondary buffers, and controls global 3D parameters.|IDirectSoundBuffer,
IDirectSound3DListener8| |Effect|Zero or more for each secondary buffer|Transforms the sound in a secondary buffer.|Interface for the particular effect, such as IDirectSoundFXChorus8| —

Then our step is clear.

  1. Create an object that supports the IDirectSound8 interface.This object usually represents the default playback device.
  2. Create a secondary buffer
  3. Obtain data to play
  4. Put data in the buffer
  5. Play the buffer

Initializing

Create the Object

We first create a function called Win32InitDSound to initialize our sound buffer.

In this function, first of all ,we have to create a Device object, which represents the rendering device.We call it DirectSound.And this object’s type is IDirectSound8

So we call the function DirectSoundCreate8

LPDIRECTSOUND8 DirectSound;

if (SUCCEEDED(DirectSoundCreate8(nullptr, &DirectSound, nullptr)))
{}

Now, we get the DirectSound Object.

Set Cooperative Level

After this, we have to call SetCooperativeLevel. This will bind the Object to a window and determine how the sound device will be shared with other application. This must be set before the buffers are able o be played.

Set the Description of the buffer

If we want to Create a sound buffer, we have to pass it a DSBUFFERDESC Structure. This structure descirbes the sound buffer to create.So we set the BufferDescription:

DSBUFFERDESC BufferDescription = {};
SecureZeroMemory(&BufferDescription, sizeof(DSBUFFERDESC));
BufferDescription.dwSize = sizeof(BufferDescription);
BufferDescription.dwFlags = DSBCAPS_PRIMARYBUFFER;//This indicates that it's a Primary Buffer

Create the buffer and set the format

After all these things, we are ready to create the Buffer.Just use the CreateSoundBuffer function.

We then need to Set the format of this. Use the SetFormat Method. This requires a WAVEFORMATEX Structure:

    WAVEFORMATEX WaveFormat = {};
    WaveFormat.wFormatTag = WAVE_FORMAT_PCM;
    WaveFormat.nChannels = 2;
    WaveFormat.nSamplesPerSec = SamplesPerSecond;
    WaveFormat.wBitsPerSample = 16;
    WaveFormat.nBlockAlign = (WaveFormat.nChannels * WaveFormat.wBitsPerSample) / 8;
    WaveFormat.nAvgBytesPerSec = WaveFormat.nSamplesPerSec * WaveFormat.nBlockAlign;
    WaveFormat.cbSize = 0;

    if (SUCCEEDED(DirectSound->SetCooperativeLevel(Window, DSSCL_PRIORITY)))
    {

        //Create the Primary Buffer
        //TODO: DSCCAPS_GLOBALFOCUS?
        LPDIRECTSOUNDBUFFER PrimaryBuffer;
        if (SUCCEEDED(DirectSound->CreateSoundBuffer(&BufferDescription, &PrimaryBuffer, 0)))
        {
            if (SUCCEEDED(PrimaryBuffer->SetFormat(&WaveFormat)))
            {
                OutputDebugStringA("Primary Buffer format was set\n");
            }
            else
            {
                //TODO:Diagnostic
            }
        }
        else
        {
            //TODO: Diagnostic
        }
    }

Creating the Seoncondary buffer is the same.Notice that we use the secondary buffer as a global variable.

Write sound test

We want to write a square wave to our buffer and play it.

So how to get a square Wave?

Initialize Square wave

We would like to describe a sequence of variable to describe our square wave.

int SamplesPerSecond = 48000;
int ToneHz = 256;
int16 ToneVolume = 6000;
uint32  RunningSampleIndex = 0;
int SquareWavePeriod = SamplesPerSecond / ToneHz;
int HalfSquareWavePeriod = SquareWavePeriod / 2;
int BytesPerSample = sizeof(int16) * 2;
int SecondaryBufferSize = SamplesPerSecond * BytesPerSample;

We first define the SamplesPerSecond, for now ,it is 48kHz. And the ToneHz is a certain frequency that you hear, you can get more information here. Then why we need HalfSquareWavePeriod? Because we want the first half of a period is 1 and the second half is -1.
Then of course the BytesPerSample should have sizeof(int16) times 2.

Later we will use these things like this:

int16 SampleValue = ((RunningSampleIndex++ / HalfSquareWavePeriod) % 2) ? ToneVolume : -ToneVolume;

To breifly describe this, is that if it is the first part,then the value is +ToneVolume, else it is -ToneVolume, This gives us a squre wave of our samples.

Write to buffer

Unlike a static buffer, our buffer is always read something and add something. SO there comes a problem, how can we insure that the buffer we want to write is not conflict with other process?

We would use Lock method to ready all or part of the buffer for a data write.

HRESULT Lock(
         DWORD dwOffset,
         DWORD dwBytes,
         LPVOID * ppvAudioPtr1,
         LPDWORD  pdwAudioBytes1,
         LPVOID * ppvAudioPtr2,
         LPDWORD pdwAudioBytes2,
         DWORD dwFlags
)

By reading its document, we find that it receives an offset to where our lock begins. We call it BytesToLock. And then a BytesToWrite indicates the size we want the buffer to lock.Then this function gives us two pointers indicating 2 region that our locked part’s address.

Why two parts? It is because we can have two different situations:

  • If we have enought space from our Offset to the end of the buffer. In this situation, The Second pointer is NULL.
              |< BytesToWrite >|
  Buffer  |-----------------------|
              ^ (Offset)-------^
  • But there are another situation, that is , there is not enough space to write to the end, so we have to “roll back” some part to the beginning:
           |<1> part|        |  <2> part |
    Buffer |-----------------------------|
                             ^(Offset)-----------^(END)
           |~~~~~~~~|                    | ~~~~~~|

                <-------- ROLL BACK ---------|

That’s why we need two pointer.

OK then this is our logic: Lock the buffer, get the cursor, and write to it. So we get the Code:

DWORD PlayCursor;
DWORD WriteCursor;
if (SUCCEEDED(GlobalSecondaryBuffer->GetCurrentPosition(&PlayCursor, &WriteCursor)))
{

    DWORD BytesToLock = RunningSampleIndex * BytesPerSample % SecondaryBufferSize;
    DWORD BytesToWrite;
    if (BytesToLock == PlayCursor)
    {
        BytesToWrite = SecondaryBufferSize;
    }
    else if (BytesToLock > PlayCursor)
        //	if (BytesToLock > PlayCursor)
    {
        BytesToWrite = SecondaryBufferSize - BytesToLock;
        BytesToWrite += PlayCursor;
    }
    else
    {
        BytesToWrite = PlayCursor - BytesToLock;
    }

    VOID * Region1;
    DWORD Region1Size;
    VOID * Region2;
    DWORD Region2Size;
    if (SUCCEEDED(GlobalSecondaryBuffer->Lock(
        BytesToLock, BytesToWrite,
        &Region1, &Region1Size,
        &Region2, &Region2Size,
        0)))
    {
        //TODO : assert that Region1Size/2Size is valid

        DWORD Region1SampleCount = Region1Size / BytesPerSample;
        int16 *SampleOut = (int16 *)Region1;
        for (DWORD SampleIndex = 0;
            SampleIndex < Region1SampleCount;
            ++SampleIndex)
        {
            int16 SampleValue = ((RunningSampleIndex++ / HalfSquareWavePeriod) % 2) ? ToneVolume : -ToneVolume;
            *SampleOut++ = SampleValue;
            *SampleOut++ = SampleValue;
        }


        DWORD Region2SampleCount = Region2Size / BytesPerSample;
        SampleOut = (int16 *)Region2;
        for (DWORD SampleIndex = 0;
            SampleIndex < Region2SampleCount;
            ++SampleIndex)
        {
            int16 SampleValue = ((RunningSampleIndex++ / HalfSquareWavePeriod) % 2) ? ToneVolume : -ToneVolume;
            *SampleOut++ = SampleValue;
            *SampleOut++ = SampleValue;
        }
        GlobalSecondaryBuffer->Unlock(Region1, Region1Size, Region2, Region2Size);
    }
}

Notice that we have to Unlock to release the buffer!

Play it!

if (!SoundIsPlaying)
{
    GlobalSecondaryBuffer->Play(0, 0, DSBPLAY_LOOPING);
    SoundIsPlaying = true;
}

By now we have reached the day 008. You may find the day008.cpp in history folder, and thank you for your reading.
